SYH series 3D motion mixer
SYH series three-dimensional motion mixer has multi-directional movement of the mixing barrel, which makes the materials in the barrel have many cross mixing points, high mixing effect, and the uniformity can reach 99.9%.
Hotline:
+8615261126556
Details




Performance characteristics
  Driven by the driving shaft, the loaded cylinder moves in a compound motion of translation, rotation and rolling, which makes the material move in three directions along the cylinder, so as to realize the mutual flow, diffusion, accumulation and doping of various materials, so as to achieve the purpose of uniform mixing.



Applicable materials

◎ The mixing cylinder of this machine moves in multiple directions, and the material has no centrifugal force, no specific gravity segregation, layering and accumulation. Each component can have a different weight ratio, and the mixing rate is high. It is the ideal product among various mixers at present.

◎ Large cylinder loading rate, up to 90% (only 50% for ordinary mixer), high efficiency and short mixing time.

◎ All parts of the cylinder are of arc transition, and are subject to precision polishing.

◎ It is used for high uniformity mixing of powder and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and various scientific research institutions.

Parameters



ModelSYH-5SYH-15SYH-50SYH-100SYH-200SYH-400SYH-600SYH-800SYH-1000SYH-1200SYH-1500SYH-2000
Barrel volume(L)515501002004006008001000120015002000
Maximum loading volume(L)4.513.54590180360540720900108013501800
Maximum loading weight(kg)1.5-2.74-8.115-2730-5450-108100-216150-324200-432250-540300-648400-810500-1080
Spindle speed(r/min)0-200-200-200-200-150-150-130-100-100-90-90-8
Motor power(kw)0.250.371.11.52.545.57.511111518.5
Measurement(mm)600×1000
 ×1000
800×1200
 ×1000
1150×1400
 ×1000
1250×1800
 ×1550
1450×2000
 ×1550
1650×2200
 ×1550
1850×2500
 ×1750
2100×2650
 ×2000
2150×2800
 ×2100
2000×3000
 ×2260
2300×3200
 ×2500
2500×3500
 ×2800
Weight(kg)10020030080012001200150017001800200024003000

The bulk specific gravity of materials is 0.6g/cm ³ Please indicate when ordering.

VR

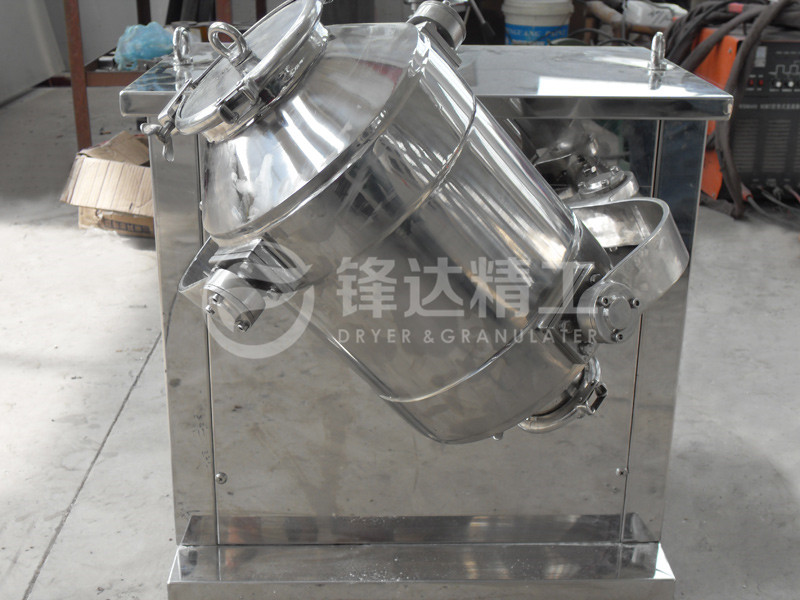

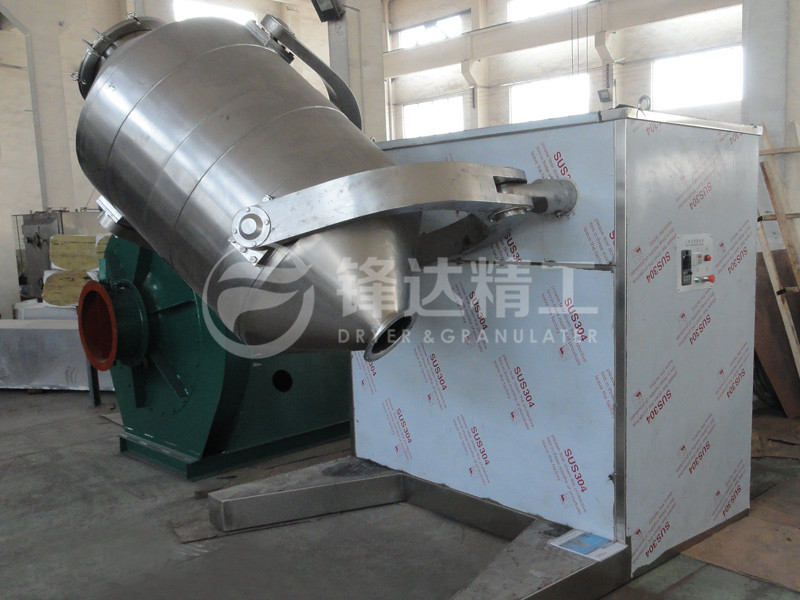

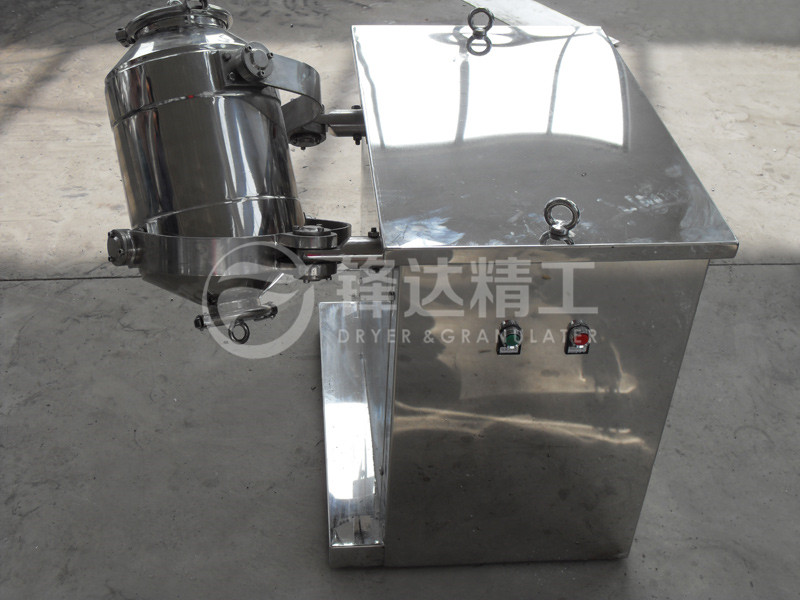

Photo Gallery
